LM-PVS01 |
|

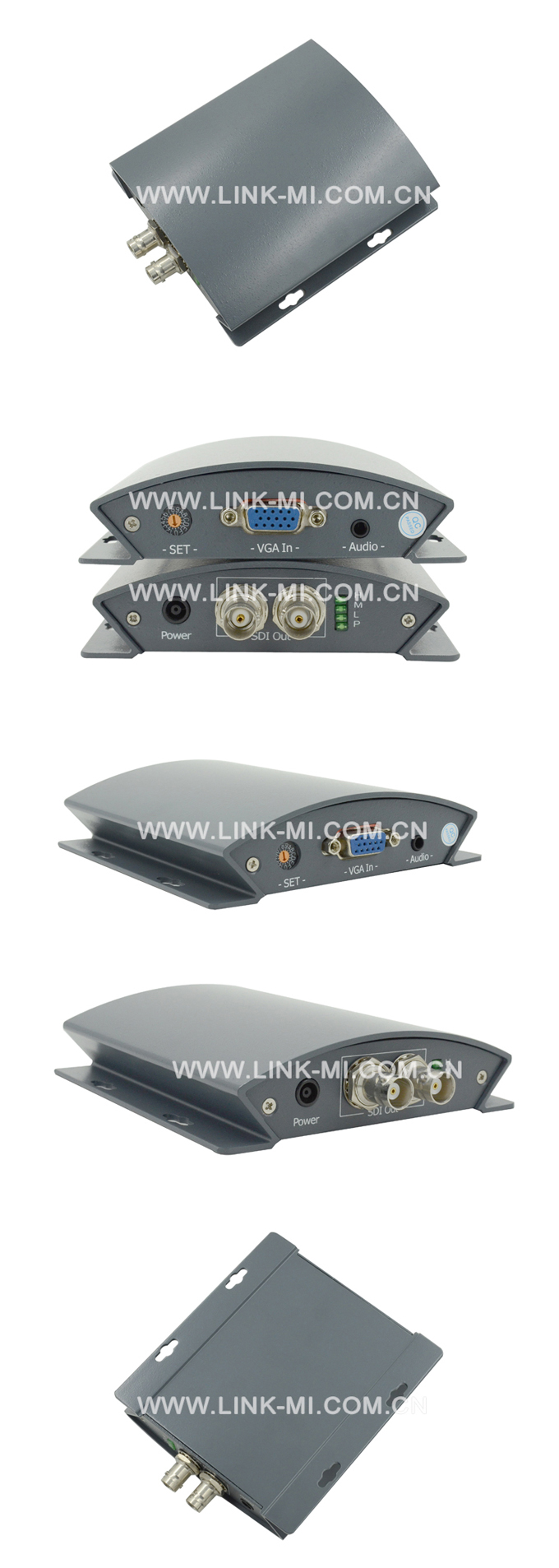

| LINK-MI LM-PVS01 Professional VGA to HD SDI Converter |
| |
Introduction:
1.VESA Standard VGA Signal Input2.3G/HD/SD SDI signal output3.High resolution video output format 1080p/1080i/720p/480i/576i/1080psf4.VGA input signal adaptively5.Supports embedded external analog stereo audio to SDI signal 6.SDI can be setting as “ frequency conversion function “ output7.SDI can be setting as “ fixed-frequency” output8.Special function can be customized |
|
|
| |
|
|
|
|
Specification
|
Product Type |
Pro VGA to SDI Converter |
|
Model No. |
LM-PVS01 |
|

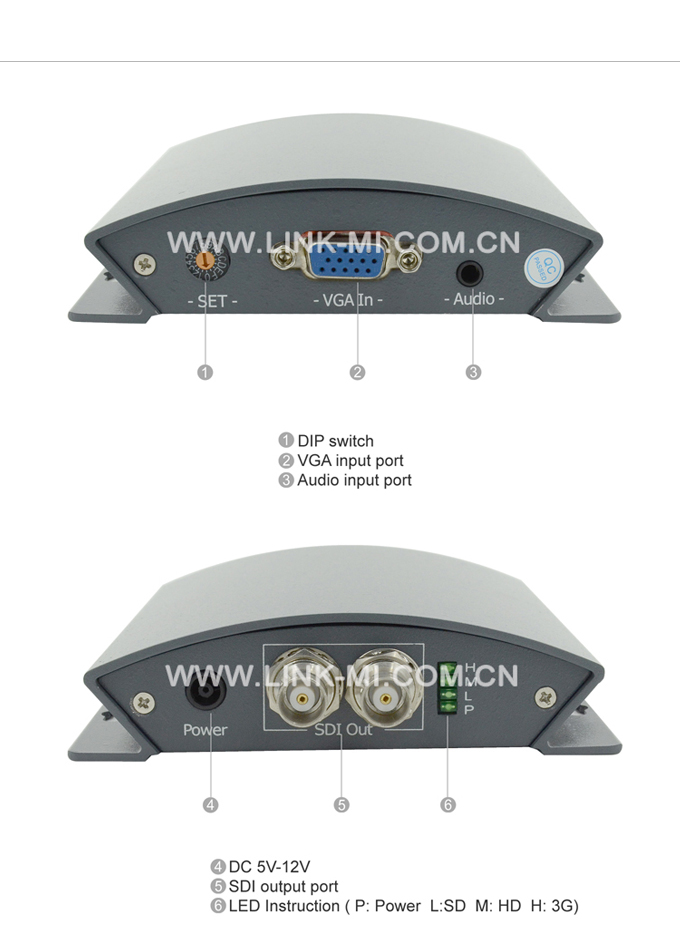

VGA Input |
Input Signal |
VESA Standard VGA Signal |
|
Connector |
DB-15 |
|
Signal Amplitude |
800mV±10%(75R) |
|
Impedance |
75Ω |
|
Analog Audio Input |
Input Signal |
Analog Stereo Audio |
|
Digital Sampling |
48K |
|
Impedance |
16Ω |
|
Connector |
Earphones |
|
SDI Output |
Output Signal |
3G/HD/SD SDI |
|
SMPTE |
270Mbps-2.97Gbps |
|
Signal Amplitude |
800mV±10% |
|
Impedance |
75Ω |
|
Connector |
BNC ( IEC169-8 Standard) |
|
General Parameters |
Power Supply |
DC 5-12V |
|
Power Consumption |
<2W |
|
Dimension ( LxWxH) |
141x102x30mm |
|

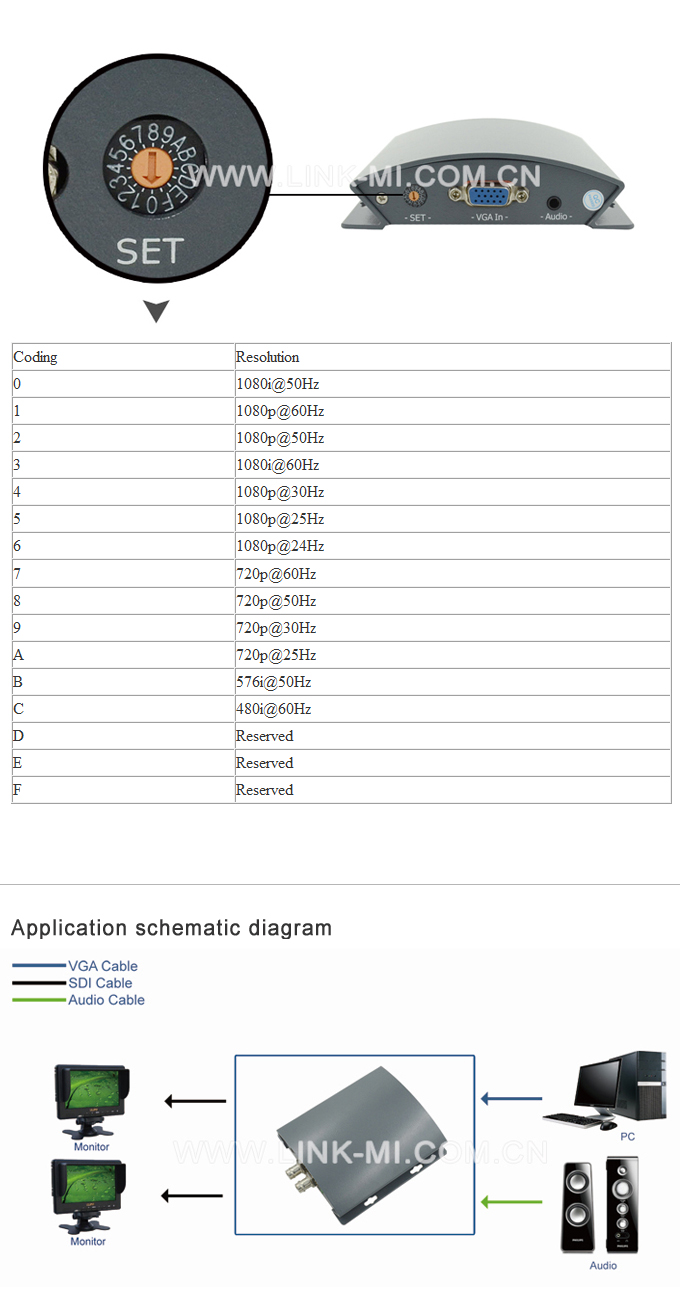

Control |
DIP Switch |
|
Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH |
Packing Contents
1. Main Unit. 1pcs Pro VGA to SDI Converter
2. 1pcs DC 5V Power Adapter
3. 1pcs User Manual
|
 |
|
|
|
|
